69391525
PRODUCT SPECIFICATIONSPart #: 0000-112143Fastener Type: Socket Head Cap ScrewSize Description: 5/16"-24 x 5/8" (FT)Diameter/Nominal Size: 5/16"Length: 5/8"Wrench Size/Across Flats: 1/4"Head Diameter: 0.457-0.469"Head Height: 0.306-0.312"Thread Pitch: 24Thread Pitch Type: FineThread Direction: RightThread Coverage: FullSystem of Measurement: InchGrade: 170 KSI Alloy Steel (Grade 9)Material: Alloy SteelFinish: Mechanical ZincHead Type: CylindricalDrive Type: Internal HexAverage Piece Weight: 0.0212100 lbs.The socket screws category contains several different types of fasteners with one thing in common: an internal hex (allen) drive.Socket head cap screws are used in fastening or clamping components together, die castings, and machine assemblies, among other uses. Socket flat head cap screws are used in applications where countersinking is desired. Used when a flush finish is required for either safety or appearance requirements. Socket button head cap screws are used when appearance is a factor, and clamping material is too thin to countersink the screw. Examples are end panels, display shelving, and carts. Socket shoulder screws are used in many tool and die applications as well as stationary guides, pulley shafts, moving shafts, or pivots. Socket low head cap screws are used in applications where not enough clearance is available for a standard socket head cap screw. Set screws are used to fasten shaft collars, gears, and knobs on shafts or where frequent adjustments are involved. Socket screws are available in a variety of materials, such as high-strength alloy steel, and different stainless steel alloys, and others.
Please see the specifications in the table below for full details. If you have any questions or doubts, or if your requirements include specific dimensions, please contact us prior to placing your order.

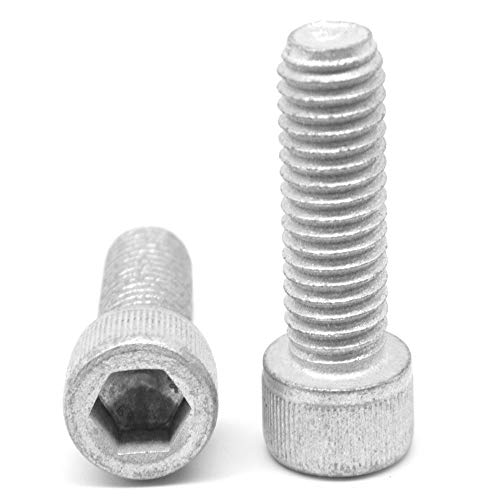

PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot.
All ASMC Industrial fasteners are guaranteed to be of the highest quality and are fully traceable and lot-controlled.
ASMC Industrial offers a comprehensive selection industrial, automotive, and construction fasteners. Our parts are high-quality, at low prices, shipped from stock. We also feature a full line of USA-made fasteners, including Grade 5 and Grade 8 hex cap screws, sockets, stainless products, nuts, and washers.
